$13.13 - $1,073.05

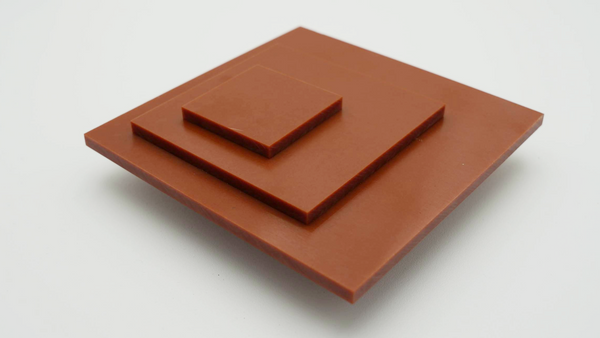

XXX Paper Phenolic Sheets from Ready Plastics provide enhanced electrical insulating properties, smooth machinability, and superior stability, making them ideal for critical electrical barriers, lightweight structural components, and insulative panels. View technical specifications and additional details below.

Current Stock:
XXX Sheets XXX Sheets XXX Sheets XXX Sheets
XXX Sheets
XXX Sheets
XXX Sheets
XXX Sheets

Details on XXX Sheets

Ready Plastic's electrical-grade (XXX) Paper Phenolic sheets are high-pressure thermoset laminates made from layers of paper impregnated with phenolic resin. Known for excellent electrical insulating properties, mechanical strength, and moisture resistance, XXX Paper Phenolic material is lightweight yet durable, making it ideal for various industrial applications, including electrical components, structural supports, and panels. Common uses include switchgear insulation, transformer spacers, and mechanical wear parts.



Technical Specifications

MIL-SPEC: Mil-1-24768/10 Type PBE
NEMA GRADE:  XXX SHEET
ASTM-SPEC: ASTM D709

XXX Material Properties

Specific Gravity: 1.38
Tensile Strength (psi): 13,000
Comp. Strength: 35,000
Flexural Strength (psi): 22,000
Hardness, M Scale: 101
Bond Strength (psi): 1,200
Shear Strength (psi): 12,800
Dissipation Factor, 10 cycles, Cond A: 0.035
Dielectric Constant 10 cycles, Cond A: 5.10
Electric Strength V/MIL Cond A: 700
Flammability Rating: 94HB
Max. Oper. Temp C/F: 140/284
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.50
Water Absorption %-24 hrs: 0.57
Izod Impact Strength (ft/lb/in) @ 49 C: 0.55
