XX Sheets

  1. Home
  2. › Shop All
  3. › Sheets
$5.38 - $1,201.31

Engineered for excellent electrical insulating properties and mechanical strength, XX Paper Phenolic sheets from Ready Plastics are ideal for structural panels, electrical components, and mechanical supports. View technical specifications and additional details below.

Current Stock:

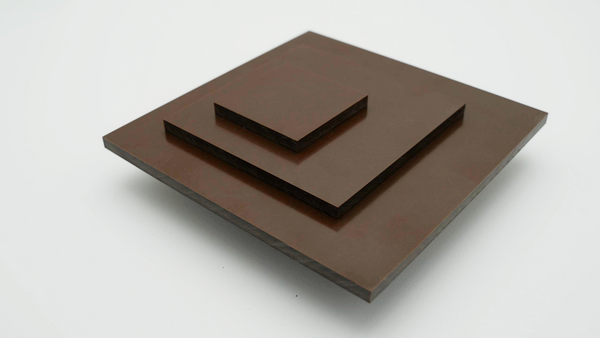

XX Sheets
XX Sheets

Details on XX Sheets

Ready Plastic's XX sheets are high-quality thermoset laminates made from paper and phenolic resin, engineered to provide excellent electrical insulation in low-voltage applications. These sheets are lightweight, easy to machine, and offer reliable dimensional stability, making them ideal for crafting insulating panels, barriers, and support components in electrical systems. Known for their cost-effectiveness and dependable performance, XX sheets are a preferred choice for industries that prioritize electrical insulation and machinability for low-stress applications.



Technical Specifications

MIL-SPEC:Mil-1-24768/11 Type PBG
NEMA GRADE: XX Sheets
ASTM-SPEC: ASTM D709

Material Properties

Specific Gravity: 1.35
Tensile Strength (psi): 17,000
Comp. Strength: 35,000
Flexural Strength (psi): 34,000
Hardness, M Scale: 120
Bond Strength (psi): 1,500
Shear Strength (psi): 11,500
Dissipation Factor, 10 cycles, Cond A: 0.040
Dielectric Constant 10 cycles, Cond A: 5.3
Electric Strength V/MIL Cond A: 750
Flammability Rating: 94HB
Max. Oper. Temp C/F: 140/284
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.20
Water Absorption %-24 hrs: 2.00
Izod Impact Strength (ft/lb/in) @ 49 C: 0.80
