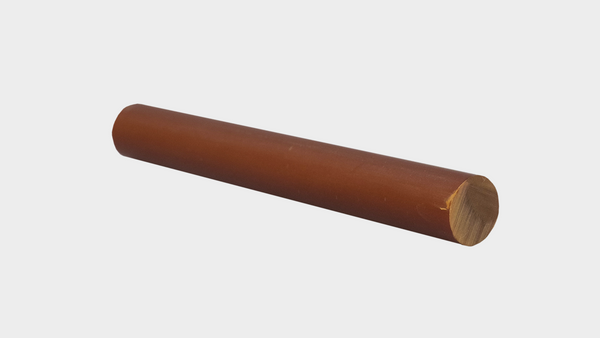

XX Rods

  1. Home
  2. › Shop All
  3. › Rods
$3.47 - $139.30

Engineered for excellent electrical insulating properties and mechanical strength, XX Paper Phenolic Rods from Ready Plastics are ideal for structural panels, electrical components, and mechanical supports. View technical specifications and additional details below.

Current Stock:
XX Rods XX Rods XX Rods
XX Rods
XX Rods
XX Rods

Details on XX Rods

Ready Plastic's XX Paper Phenolic rods are durable thermoset laminates constructed from paper and phenolic resin, specifically designed for dependable electrical insulation in low-voltage applications. Known for their stability, machinability, and lightweight properties, XX rods are ideal for applications requiring reliable electrical performance without added bulk. These rods are perfect for producing insulating bushings, spacers, and structural components where consistent insulation and easy machining are essential. XX rods offer a cost-effective solution for industries looking for lightweight, insulating materials that maintain strength and performance.



Technical Specifications

MIL-SPEC: Mil-1-24768/11 Type PBG
NEMA GRADE: XX SHEET ROD
ASTM-SPEC: ASTM D709

Paper Phenolic (XX) Material Properties

Specific Gravity: 1.35
Tensile Strength (psi): 17,000
Comp. Strength: 35,000
Flexural Strength (psi): 34,000
Hardness, M Scale: 120
Bond Strength (psi): 1,500
Shear Strength (psi): 11,500
Dissipation Factor, 10 cycles, Cond A: 0.040
Dielectric Constant 10 cycles, Cond A: 5.3
Electric Strength V/MIL Cond A: 750
Flammability Rating: 94HB
Max. Oper. Temp C/F: 140/284
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.20
Water Absorption %-24 hrs: 2.00
Izod Impact Strength (ft/lb/in) @ 49 C: 0.80
