$2.81 - $1,388.42

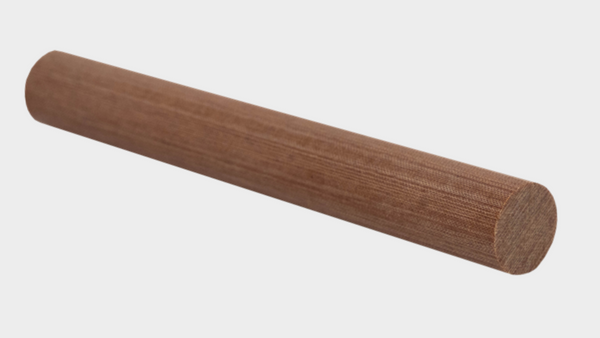

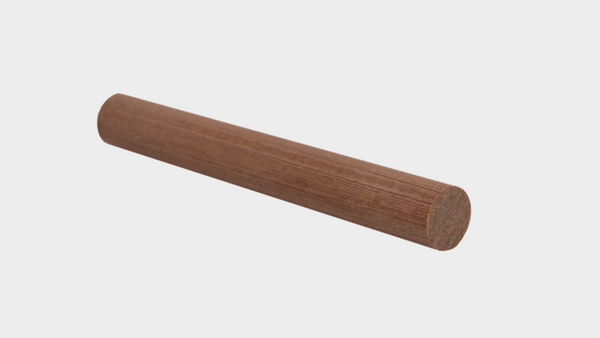

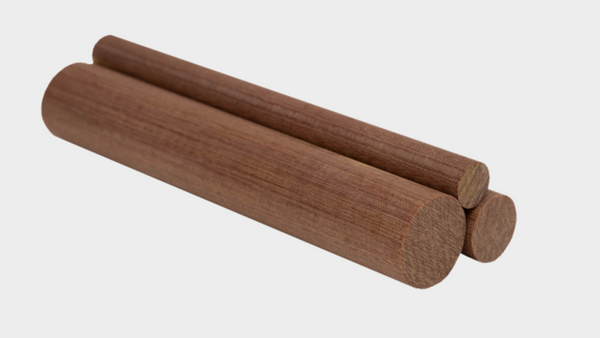

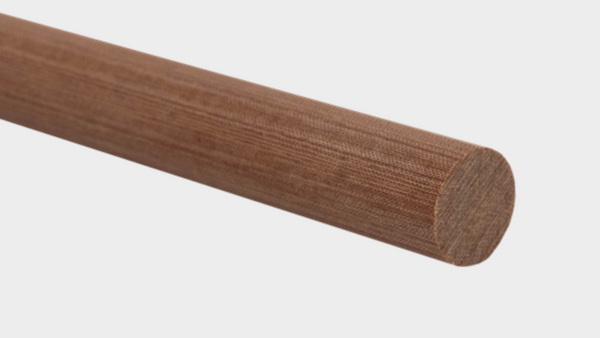

Linen Phenolic (LE) Rods from Ready Plastics are crafted for superior mechanical strength, exceptional wear resistance, and reliable electrical insulation. Ideal for precision turned components, bushings, and high-performance insulators. See technical specifications and more details below.



Current Stock:
Color *
LE Rods LE Rods LE Rods LE Rods
LE Rods
LE Rods
LE Rods
LE Rods

Details on LE Rods

Ready Plastic's LE rods are high-quality thermoset laminates crafted from fine linen fabric and phenolic resin, offering exceptional machinability and reliable low-voltage electrical insulation. With a smooth finish and solid dimensional stability, LE rods perform effectively in a variety of electrical and mechanical applications. These rods are perfect for producing insulating bushings, spacers, and precision components where a high level of machining detail is needed. LE rods provide dependable strength and insulation, making them suitable for industries focused on precision and performance.



Technical Specifications

MIL-SPEC: Mil-1-24768/13 Type FBE
NEMA GRADE: LE SHEET ROD
ASTM-SPEC: ASTM D709

Material Properties

Specific Gravity: 1.34
Tensile Strength (psi): 13,000
Comp. Strength: 36,000
Flexural Strength (psi): 18,000
Hardness, M Scale: 100
Bond Strength (psi): 1,900
Shear Strength (psi): 13,500
Dissipation Factor, 10 cycles, Cond A: 0.065
Dielectric Constant 10 cycles, Cond A: 5.70
Electric Strength V/MIL Cond A: 625
Flammability Rating: 94HB
Max. Oper. Temp C/F: 125/257
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.80
Water Absorption %-24 hrs: 1.90
Izod Impact Strength (ft/lb/in) @ 49 C: 1.35
