$62.71 - $5,652.19

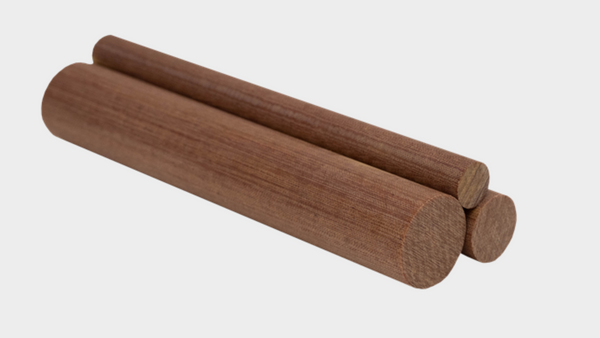

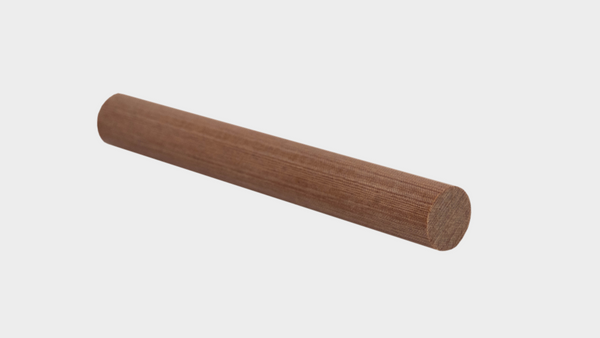

Linen Phenolic Rods from Ready Plastics feature excellent machinability, dependable mechanical strength, and a smooth surface finish. Perfect for crafting precision parts, bushings, and components where wear resistance and stability are key. See technical specifications and additional details below.

Current Stock:
L Rods L Rods L Rods L Rods
L Rods
L Rods
L Rods
L Rods

Details on Linen Phenolic Rods

Ready Plastic's Linen Phenolic rods are high-pressure thermoset laminates made from continuous layers of linen fabric impregnated with phenolic resin. These rods offer excellent mechanical strength, good electrical insulating properties, and superior wear resistance. Linen Phenolic rods are ideal for precision machining, providing a smooth surface and fine detail capability, which makes them perfect for producing bushings, bearings, gears, and other mechanical components. Their combination of strength, durability, and light weight makes Linen Phenolic rods a versatile solution for a wide range of industrial applications where reliable performance and machinability are essential.



Technical Specifications

MIL-SPEC: MIL-I-24768/15 Type FBI
NEMA GRADE: L SHEET ROD
ASTM-SPEC: ASTM D709

Linen Phenolic (L) Material Properties

Specific Gravity: 1.34
Tensile Strength (psi): 14,000
Comp. Strength: 35,000
Flexural Strength (psi): 23,000
Hardness, M Scale: 105
Bond Strength (psi): 1,700
Shear Strength (psi): 13,500
Dissipation Factor, 10 cycles, Cond A: –
Dielectric Constant 10 cycles, Cond A: –
Electric Strength V/MIL Cond A: –
Flammability Rating: 94HB
Max. Oper. Temp C/F: 125/257
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.04
Water Absorption %-24 hrs: 1.04
Izod Impact Strength (ft/lb/in) @ 49 C: 1.70
