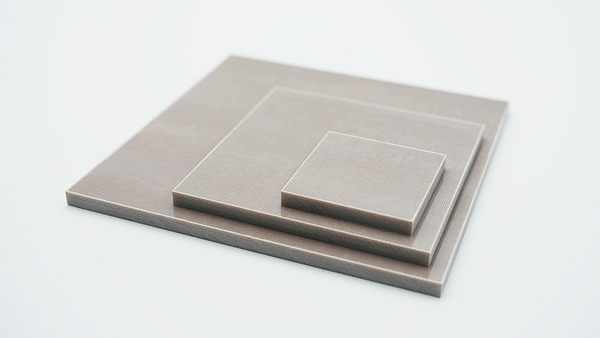

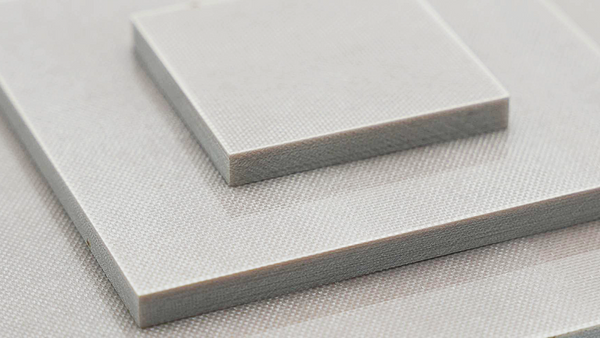

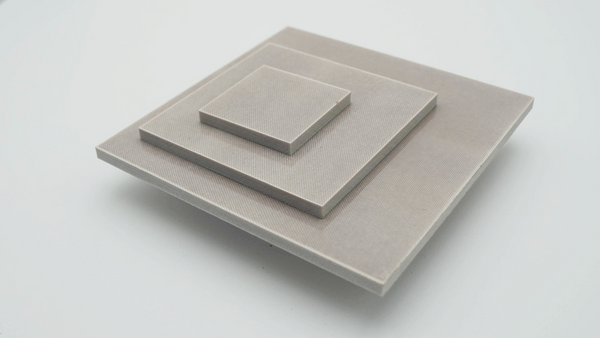

G9 Sheets

$14.72 - $4,823.39

G-9 Sheets from Ready Plastics provide robust mechanical strength, superior electrical insulation, and reliable resistance to moisture and chemicals. Perfect for high-performance insulation, structural components, and applications requiring durability in demanding environments. See technical specifications and additional details below.

Current Stock:

Select Sheet Color *

Select Sheet Size *

Select Sheet Thickness *

Quantity

Details on G9 Sheet

Ready Plastic's G9 sheets are rugged thermoset laminates made from woven glass cloth and melamine resin, engineered for superior electrical insulation and flame resistance. With excellent heat resistance and durability, G9 sheets maintain their insulating properties and structural integrity under demanding conditions. These sheets are highly machinable, making them ideal for producing insulating barriers, structural panels, and protective covers in applications that require both mechanical strength and reliable electrical insulation. G9 sheets are a dependable solution for industries where safety, resilience, and performance under thermal stress are essential.

Technical Specifications

MIL-SPEC: Mil-1-24768/1 Type GME
NEMA GRADE: G9 SHEET

ASTM-SPEC: ASTM D709

G9 Material Properties

Specific Gravity: 1.85
Tensile Strength (psi): 39,000
Comp. Strength: 70,000
Flexural Strength (psi): 55,000
Hardness, M Scale: 115
Bond Strength (psi): 1,900
Shear Strength (psi): 18,000
Dissipation Factor, 10 cycles, Cond A: 0.015
Dielectric Constant 10 cycles, Cond A: 7.00
Electric Strength V/MIL Cond A: 450
Flammability Rating: 94V-O
Max. Oper. Temp C/F: 140/284
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.50
Water Absorption %-24 hrs: 0.60
Izod Impact Strength (ft/lb/in) @ 49 C: 12.50
