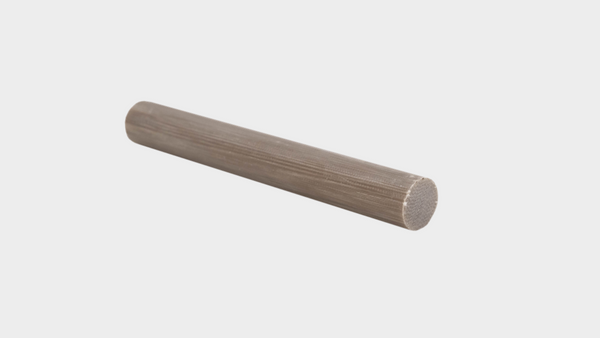

G9 Rods

$8.27 - $520.43

G-9 Rods from Ready Plastics deliver excellent mechanical strength, outstanding electrical insulation, and resistance to moisture and chemicals, even in high-humidity environments. Ideal for insulating components, high-performance bushings, and applications requiring resilience under challenging conditions. See technical specifications and additional details below.

Current Stock:

Select Sheet Color *

Select Sheet Size *

G9 Rod Diameter *

Quantity

Details on G9 Rod

Ready Plastic's G9 rods are high-quality thermoset laminates crafted from melamine resin and glass cloth, designed to deliver outstanding electrical insulation along with exceptional flame resistance. Known for their stability under heat and mechanical stress, G9 rods are well-suited for demanding applications requiring both structural strength and reliable insulation. With excellent machinability, G9 rods are ideal for components like insulating bushings, spacers, and support elements in electrical and industrial systems. Choose G9 rods for durable, high-performance materials that meet stringent electrical and fire-resistant requirements.

Technical Specifications

MIL-SPEC: Mil-1-24768/1 Type GME
NEMA GRADE: G9 SHEET ROD
ASTM-SPEC: ASTM D709

Material Properties

Specific Gravity: 1.85
Tensile Strength (psi): 39,000
Comp. Strength: 70,000
Flexural Strength (psi): 55,000
Hardness, M Scale: 115
Bond Strength (psi): 1,900
Shear Strength (psi): 18,000
Dissipation Factor, 10 cycles, Cond A: 0.015
Dielectric Constant 10 cycles, Cond A: 7.00
Electric Strength V/MIL Cond A: 450
Flammability Rating: 94V-O
Max. Oper. Temp C/F: 140/284
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.50
Water Absorption %-24 hrs: 0.60
Izod Impact Strength (ft/lb/in) @ 49 C: 12.50
