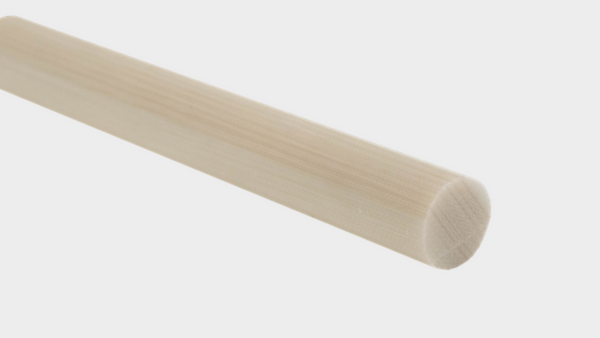

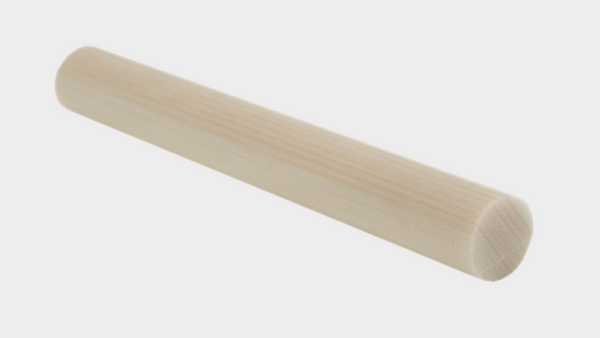

G7 Rod
$19.58 - $835.38
G-7 Rods from Ready Plastics offer exceptional heat resistance, reliable electrical insulation, and mechanical strength. Perfect for use in spacers, precision components, and applications exposed to high temperatures. See technical specifications and additional details below.
Current Stock:
Details on G7 Rod
Ready Plastic's G7 rods are precision-engineered thermoset laminates crafted from silicone resin and glass cloth, designed for excellent electrical insulating properties and high heat resistance. G7 rods offer reliable performance in environments where stability under thermal and electrical loads is crucial, making them suitable for insulating sleeves, bushings, and support components. Known for their machinability and ability to withstand high temperatures, G7 rods are a top choice for industries requiring durable, high-performance materials that excel under intense conditions.
Technical Specifications
MIL-SPEC: Mil-1-24768/17 Type GSG
NEMA GRADE: G7 SHEET ROD
ASTM-SPEC: ASTM D709
Material Properties of G7 Rod
Specific Gravity: 1.78
Tensile Strength (psi): 18,000
Comp. Strength: 45,000
Flexural Strength (psi): 25,000
Hardness, M Scale: 105
Bond Strength (psi): 900
Shear Strength (psi): 17,000
Dissipation Factor, 10 cycles, Cond A: 0.003
Dielectric Constant 10 cycles, Cond A: 4.20
Electric Strength V/MIL Cond A: 400
Flammability Rating: 94V-O
Max. Oper. Temp C/F: 220/428
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.00
Water Absorption %-24 hrs: 0.20
Izod Impact Strength (ft/lb/in) @ 49 C: 6.50
