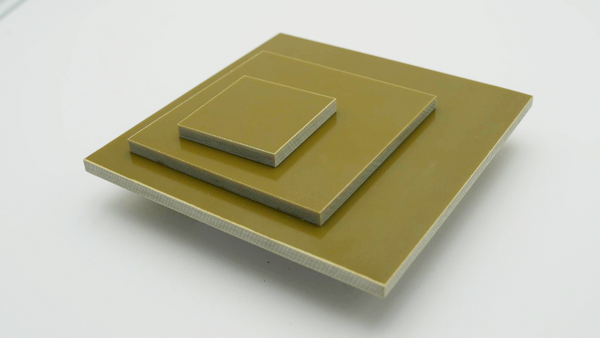

G11 Sheets
G-11 Sheets from Ready Plastics offer exceptional high-temperature performance, excellent mechanical strength, and reliable electrical insulating properties. Ideal for applications requiring thermal stability, such as insulation panels, structural components, and high-performance electrical barriers. View technical specifications and more material details below.
Details on G11 Sheet
G11 sheets are premium thermoset laminates made from high-strength fiberglass cloth and epoxy resin, engineered to withstand high temperatures while providing excellent electrical insulation. Known for their exceptional thermal stability, G11 sheets retain their strength and insulating properties in extreme environments, making them ideal for applications requiring durability and consistent performance. With impressive machinability, these sheets are perfect for fabricating insulating panels, structural supports, and protective barriers. G11 sheets offer reliable performance where both heat resistance and mechanical strength are essential, making them a trusted choice across demanding industrial and electrical applications.
Technical Specifications
MIL-SPEC: MIL-I-24768/3 Type GEB
NEMA GRADE: G11 SHEET
ASTM-SPEC: ASTM D709
G11 Material Properties
Specific Gravity: 1.82
Tensile Strength (psi): 37000
Comp. Strength: 63000
Flexural Strength (psi): 75000
Hardness, M Scale: 112
Bond Strength (psi): 2200
Shear Strength (psi): 22000
Dissipation Factor, 10 cycles, Cond A: 0.020
Dielectric Constant 10 cycles, Cond A: 5.00
Electric Strength V/MIL Cond A: 900
Flammability Rating: 94HB
Max. Oper. Temp C/F: 180/356
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.10
Water Absorption %-24 hrs: 0.20
Izod Impact Strength (ft/lb/in) @ 49 C: 12.00
