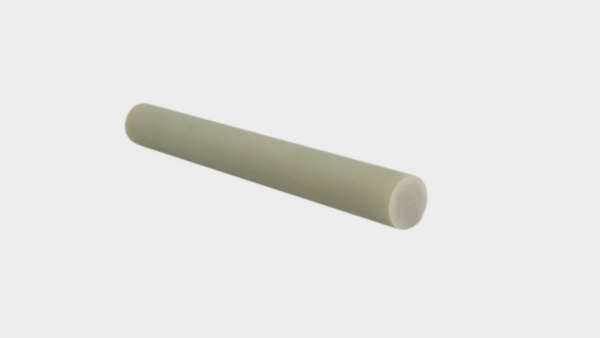

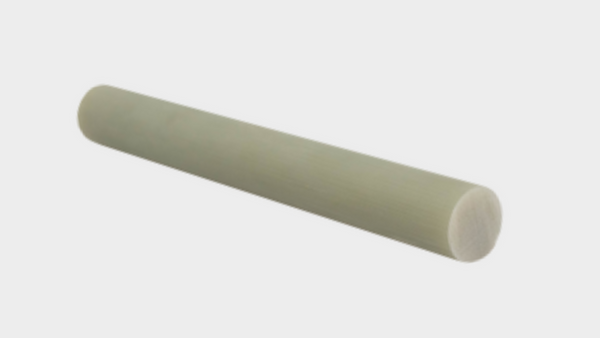

FR4 Rod

$5.98 - $1,373.59

FR-4 Rods from Ready Plastics are engineered for high strength, electrical insulation, and flame retardance, making them well-suited for precision components, spacers, and insulating supports in electrical assemblies. See technical specifications and additional details below.

Current Stock:

Select Rod Color *

Rod Length *

Select Rod Diameter *

Quantity

Details on FR4 Rods

FR4 rods are high-performance thermoset laminates made from woven fiberglass cloth and epoxy resin, designed to deliver superior electrical insulation and mechanical strength. With excellent dimensional stability and resistance to moisture, FR4 rods maintain their integrity in harsh environments, making them ideal for applications where electrical reliability and durability are paramount. Known for its flame-retardant properties, FR4 provides dependable performance even under elevated temperatures and challenging conditions. These rods are perfect for fabricating insulating supports, spacers, and structural components in electrical assemblies and equipment, where safety, strength, and long-lasting reliability are essential.

Technical Specifications

MIL-SPEC: Mil-1-24768/27 Type GEE-F
NEMA GRADE: FR4 SHEET ROD

ASTM-SPEC: ASTM D709

Material Properties

Specific Gravity: 1.85
Tensile Strength (psi): 38,000
Comp. Strength: 66,000
Flexural Strength (psi): 60,000
Hardness, M Scale: 115
Bond Strength (psi): 2,300
Shear Strength (psi): 21,500
Dissipation Factor, 10 cycles, Cond A: 0.022
Dielectric Constant 10 cycles, Cond A: 4.80
Electric Strength V/MIL Cond A: 800
Flammability Rating: 94V-O
Max. Oper. Temp C/F: 140/284
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.00
Water Absorption %-24 hrs: 0.10
Izod Impact Strength (ft/lb/in) @ 49 C: 14.00
