Canvas Phenolic (C) Rods from Ready Plastics are crafted for high mechanical strength, reliable electrical insulation, and ease of machining. Perfect for bushings, spacers, and precision turned parts. See technical specifications and additional details below.

Current Stock:

No Reviews Write a Review

Details on C Rods

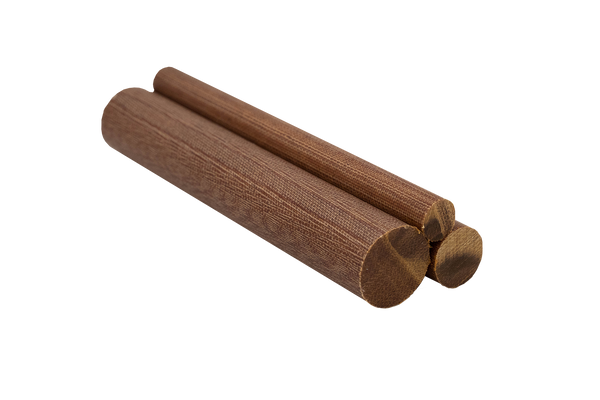

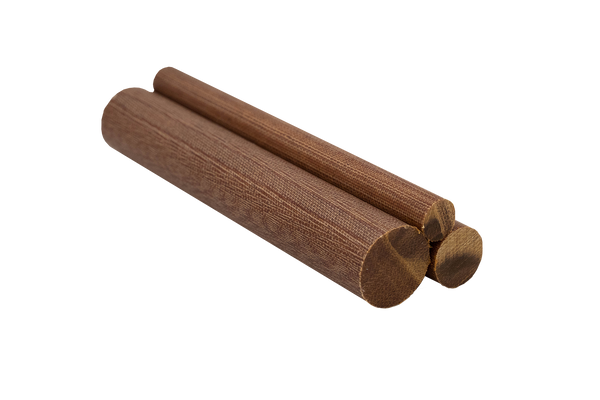

Ready Plastic's Canvas Phenolic (C) rods are high-performance thermoset laminates created from layers of cotton canvas fabric saturated with phenolic resin, delivering a robust combination of durability, impact strength, and wear resistance. Canvas Phenolic (C) offers excellent machinability, with a slightly coarser surface finish compared to linen grades, making it particularly well-suited for mechanical applications requiring a high degree of resilience and load-bearing capacity. This material maintains its strength and shape under varying temperatures and stress, ensuring reliable performance over extended periods. Lightweight and tough, Canvas Phenolic (C) rods are ideal for crafting components such as bushings, spacers, washers, and rollers, as well as parts in high-wear industrial environments where strength and dimensional stability are essential.



Technical Specifications


MIL-SPEC: Mil-1-24768/16 Type FBM
NEMA GRADE: C SHEET ROD
ASTM-SPEC: ASTM D709

Canvas Phenolic (C) Material Properties


Specific Gravity: 1.35
Tensile Strength (psi): 11,200
Comp. Strength: 37,000
Flexural Strength (psi): 22,000
Hardness, M Scale: 103
Bond Strength (psi): 2,000
Shear Strength (psi): 14,000
Dissipation Factor, 10 cycles, Cond A:
Dielectric Constant 10 cycles, Cond A:
Electric Strength V/MIL Cond A:
Flammability Rating: 94HB
Max. Oper. Temp C/F: 125/257
Coeff. Thermal Exp. IN/IN/C x 10-5: 1.10
Water Absorption %-24 hrs: 1.60
Izod Impact Strength (ft/lb/in) @ 49 C: 1.95
